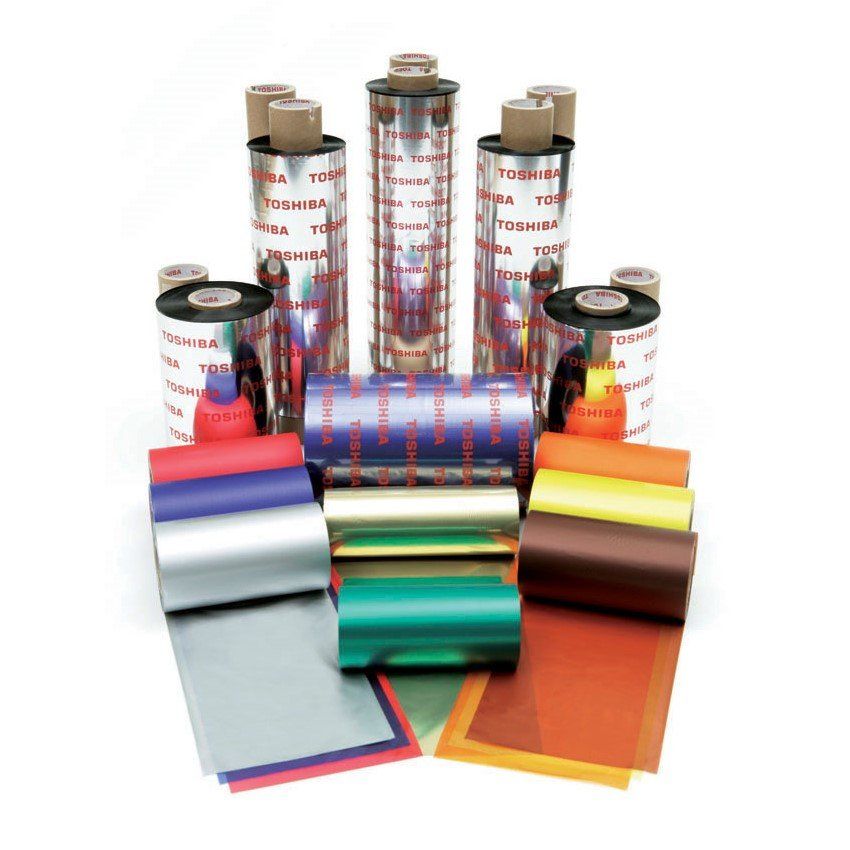

An introduction to Toshiba TEC Approved Thermal Transfer Ribbons
Toshiba have more than 30 years’ experience in the thermal transfer printing industry, and in addition to manufacturing some of the best quality thermal transfer printers on the market they also supply high quality branded thermal transfer ribbons.
Toshiba ribbons are available in a wide variety of grades and sizes to suit every possible application, from mass-produced short-term produce label printing to long shelf life, exceptionally durable industrial product identification.
All the common size and grade combinations are held in UK stock and available for next-day delivery.
Toshiba are largest thermal transfer ribbon distributor in Europe
, and Toshiba ribbons are the number one choice for quality and reliability.
Why choose Toshiba TEC ribbons?
Genuine Toshiba ribbons have been designed to work with the full Toshiba printer range and will ensure your printer operates to its full potential, giving the best possible print quality whilst maximising the life of the printhead. Before receiving a certificate of approval from Toshiba each ribbon grade undergoes rigorous testing on a variety of receiving materials to ensure compatibility and reliability in real world production environments.
Whilst there are cheaper compatible ribbons available, these inevitably prove to be a false economy. Compatible ribbons produce a less dense image and the back coating, which is used to protect the printhead from abrasion, is invariably ineffective. The printhead on any thermal transfer printer is by far the most expensive consumable part, and genuine Toshiba ribbons have a back coating specially formulated to protect the printhead.
It is also important to note that only Toshiba branded ribbons are approved for use in Toshiba printers
, and the use of non-branded compatible ribbons will invalidate the printhead warranty. For example, when using genuine Toshiba ribbons in a B-SX4/5T or any B-EX range printer the printhead is warrantied for 100 kilometres of print or 6 months, whichever is sooner. By comparison there is no warranty whatsoever if compatible ribbons are used, making the use of compatibles an expensive strategy if the printhead fails prematurely.
Toshiba ribbon grades
Toshiba offer a full range of ribbon grades to cover virtually any application:
Wax
• Prints onto a wide range of paper label stocks
• Sharp printed images with good levels of blackness
• Extensively used to print labels for short life span products such as fresh fruit and vegetables, fast foods, bakery products etc.
Wax/Resin
• Greater smudge and scratch resistance than wax ribbons
• Print onto a wide variety of papers and matt synthetics
• Ideal for printing delivery and long product life labels
Resin
• Excellent resistance to weather, heat, chemical and solvent exposure
• Designed to print onto gloss paper and most synthetic materials
• ideally suited to industrial environments
Speciality Resin
• Offers the greatest resistance to heat, solvent and chemical exposure
• Superior mechanical and scratch resistance
• Ideal for the auto and aviation industries
Textile Resin
• Specially designed to print onto poly satin and nylon textile garments
• Excellent resistance to washing, dry cleaning and ironing processes
The Toshiba Ribbon range
The following black ribbon grades are suitable for Flathead Printers B-EX4-T2, B-EX6-T3, BA-400, B-SA4T, B-EV4T, B-852:
Wax Ribbons
AW1F Basic wax where price is the key factor
AW6F Improved print performance for general purpose
SW1 Resin enhanced wax with superior smudge resistance
Wax/Resin Ribbons
SG3F Low cost and good coverage on a variety of materials
AG3 General purpose printing with improved blackness
AG4 Premium quality for harsh environmental conditions
Resin Ribbons
SS3F Basic resin for high speed, general purpose printing
AS1(F) BS5609 approved ribbon with excellent compatibility
AS2 Premium resin with excellent heat and lead-free petrol resistance
AS3 Specialist textile printing with high resistance to washing and dry cleaning
Colour ribbons Toshiba ribbons are also available in a range of colours, please contact us for further details.
The following black ribbon grades are suitable for Near Edge Printers B-EX4-T1, B-EX6-T1, B-SX4/5T, B-SX6/8T:
Wax/Resin Ribbons
AG6E 800M roll length for increased print run and less packaging waste
AG2 The industry standard general-purpose wax/resin grade
SG2 Excellent blackness and high definition printing on multiple label types
AG4 Superior smudge and solvent resistance
Resin Ribbons
AS1 Premium scratch and solvent resistance, BS5609 approved
SS1 For general purpose printing onto synthetic materials
AS2 Premium resin with excellent heat and lead-free petrol resistance
AS3 Specialist textile printing with high resistance to washing and dry cleaning
Colour ribbons Toshiba ribbons are also available in a range of colours, please contact us for further details.
Elan Coding and Systems are specialists for Toshiba ribbons
Drawing on a total of more than 80 years’ experience in the thermal transfer printing industry, the staff of Elan Coding and Systems have the knowledge and expertise to ensure you choose the correct Toshiba ribbon grade to suit every possible application. Our ribbon specialists Sue Waite and Chris Borrell have worked closely with Toshiba for several years and will be more than happy to help with your enquiry, simply call 01205 875578
